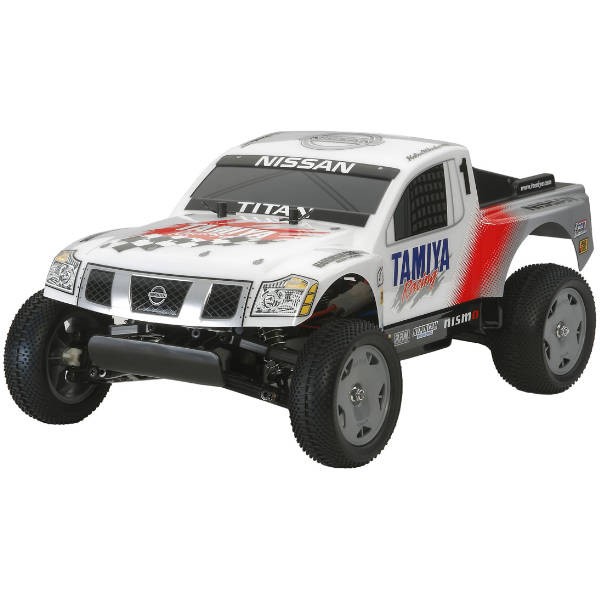

TAMIYA - NISSAN TITAN DT-02 KIT 58511

TAMIYA - NISSAN TITAN DT-02  KIT 58511

This is an easy to build Nissan Titan truck kit. The body is mounted on the Tamiya DT-02 platform buggy chassis, which makes it ideal for any new hobbyist building a construction kit for the first time. The Nissan Titan body replicates the truck as it was raced in the 2006 Championship Off-Road Racing (CORR) season in the United States.

Rear-Wheel Drive DT-02 Paired with Dual Block Tires
The DT-02 chassis bathtub type frame chassis features a longitudinal battery layout for lower center of gravity and optimum weight distribution. 4-wheel double wishbone suspension is equipped with CVA oil damper units to provide superb off-road traction. A sealed gearbox protects against dust and debris and is equipped with differential gears to ensure smooth cornering. Star-dish wheels are paired with dual block K tires front and rear to ensure that the model offers a dynamic drive.

Characteristics Tamiya Nissan Titan :
● Scale: 1/12
● Length: 413mm
● Width: 246mm
● Height: 168mm
● Wheelbase: 263mm
● Tire Width/Diameter: 30mm/88mm (Front), 40mm/88mm (Rear)
● Tread (F/R): 215mm/206mm
● Rear-Wheel Drive
● 3-Bevel Differential
● 2-Piece Steering Tie-Rod
● F/R Double Wishbone Suspension
● Gear Ratio = 9.28:1
● Motor
● Electronic Speed Controller (included)

Required for operation :
• 2-channel R/C system (servo x 1, ESC x 1)
• 7.2V NiMH battery or 7.4V Li-PO battery
• Charger for motor battery (For DC: Regulated 12V power supply)
• Tools for body painting
• Batteries for transmitter
