TAMIYA - VOLKSWAGEN COMBI TYPE 2 T1 KIT M-06L 58668

TAMIYA - VOLKSWAGEN COMBI TYPE 2 T1 KIT M-06L 58668

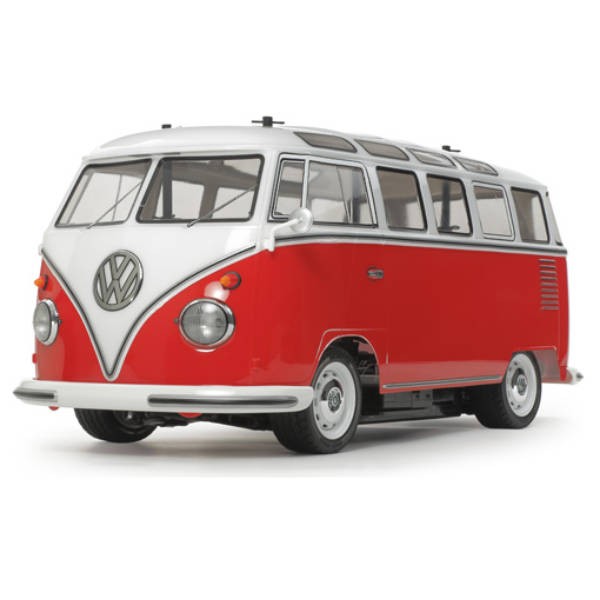

This R/C model assembly kit recreates the “23-window” type of the much-loved first generation (T1) Volkswagen Type 2, known as the Volkswagen Bus to many of its legions of fans, with an accurate polycarbonate body in detailed 1/10 scale. Combined with classic style wheels and tread patterned tires, it is mounted on the rear-wheel drive M-06 chassis.

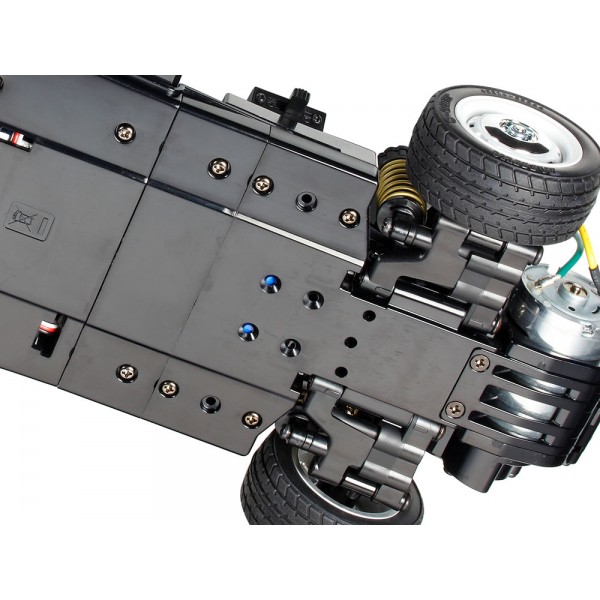

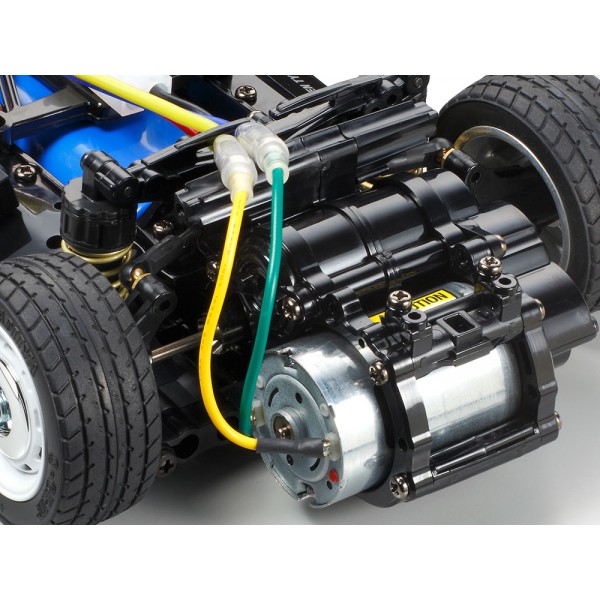

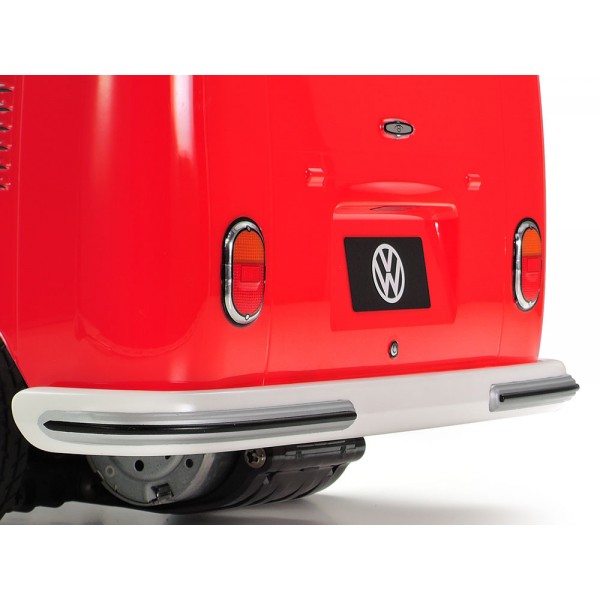

The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

Specifications Volkswagen Combi Type 2 :
● Length: 426mm
● Width: 195mm
● Height: 177mm
● Wheelbase: 239mm
● Tread (F/R): 138mm
● Rear-Motor, Rear-Wheel Drive
● 3-Bevel Differential Gear
● 3-Piece Steering Tie-Rod
● 4-Wheel Independent Double Wishbone Suspension
● F/R Friction Dampers
● Gear Ratio = 5.8:1
● Tire Width/Diameter (F/R): 25mm/59mm
● Type 540 Motor

Required for operation :
● 2-channel R/C system (servo x 1, ESC x 1)
● 7.2V NiMH battery or 7.4V Li-PO battery
● Charger for motor battery (For DC: Regulated 12V power supply)
● Tools for body painting
● Batteries for transmitter
● Tools (phillips head screw driver large, small. Needle Nose Pliers, Scissors, Sharp Hobby Knife)
