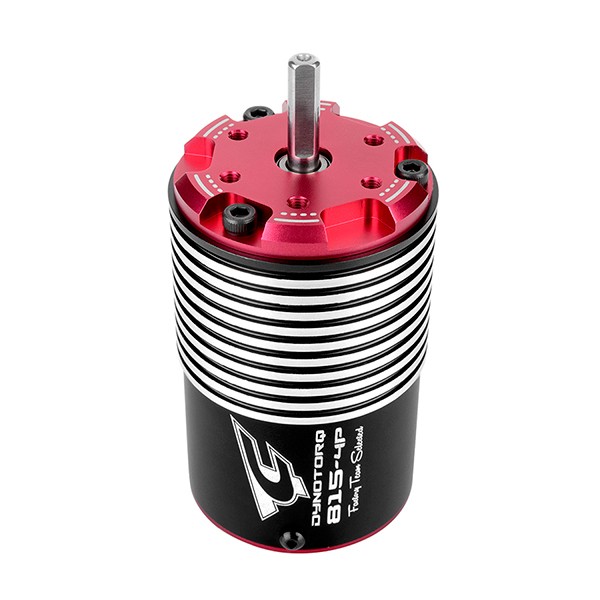

TEAM CORALLY - DYNOTORQ 815 MOTOR BRUSHLESS SENSORED 1/8 - 4-POLES 2150 KV C-61201
The Team Corally 815-4 Pole 1/8 class brushless motor series is a high performance motor line developed using the latest technologies.
We at Team Corally's R-D department only have highest efficiency and maximum power in mind, when we designed this line of 1/8 Class motors. They feature high quality oversized bearings, sintered Neodymium magnets and a superior electromagnetic design.
The result speaks for itself: impressive performance, more power, more top-end and this all keeping the motor temperature lower for maximum efficiency.
Features :
● Sensored motor for 1/8 scale competition
● Precision machined T6 aluminum motor can
● 12 Slots Stator Hi-torque motor design
● 4-Pole Rotor sintered Neodymium magnets
● High power solder tabs
● High RPM and oversized bearings
● High purity copper windings maximizes conductivity
● Precision Engineered for maximum efficiency
● Super thin (0.2mm) stator laminations
● ?5mm Shaft
● Removable / replaceable rotor
● Compatible with all Sensored/ Sensorless ESC
Power Specs :
● Poles: 4-Pole
● N° of Windings: 2D
● KV: 2150
● N° of Li-xx Cells: 2-4S
● Max. Current (A): 115A
Tech Specs :
● Motor Length: 68mm
● Motor Diameter: 40.8 - 42.8mm
● Motor Shaft: 5mm
● Sensor Ports: 1 Port
● Weight: 340g
